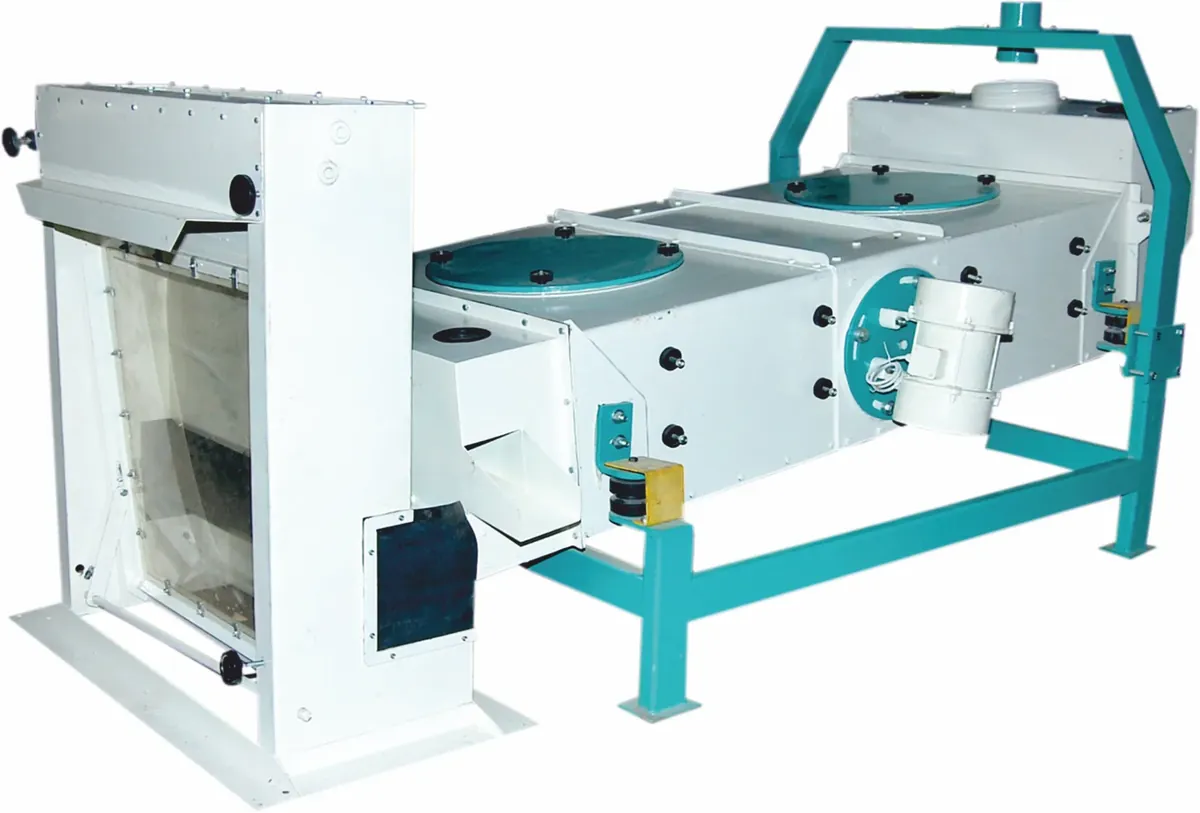

Working principle
Feed passes over sieves that separate coarse and fine impurities. Clean grain drops into a post-aspiration chamber where an air current removes remaining dust and light material. The aspiration system includes blower, cyclone, rotary airlock valve and dust collector.
Features
- Removes immature grains with other impurities
- In-built screen cleaning
- Easily interchangeable screens
- No relatively moving parts; low maintenance
- Free-swinging sieve on hollow rubber springs, driven by vibrators
- Adjustable throw angle and stroke; screen inclination preset to the application
Technical specifications
| Model | Capacity (MT/hr) | Machine HP | Blower HP | Rotary valve HP | Screen (mm) | L × W × H (mm) |
|---|---|---|---|---|---|---|
| PFPC 02 | 2 | 0.5+0.5 | 5 | 1 | 1000×1200 | 2100×1500×1500 |
| PFPC 04 | 4 | 1+1 | 7.5 | 1 | 1000×2000 | 2900×1500×1500 |
| PFPC 06 | 6 | 1.5+1.5 | 10 | 1 | 1500×2000 | 2900×2000×1800 |
| PFPC 08 | 8 | 1.5+1.5 | 10 | 1 | 1700×2000 | 2900×2200×1800 |
| PFPC 10 | 10 | 2+2 | 15 | 1 | 1800×2000 | 2900×2300×2000 |
| PFPC 12 | 12 | 2+2 | 20 | 1 | 2000×2000 | 2900×2500×2200 |
Specifications and design are subject to change without notice for improvement. Capacity depends on material, feed size, moisture and required fineness.
